FSP300M-K36-24A

Feature

  • BF Class insulation
  • 3 x 6 inch footprint with 1.3 inch low profile
  • Meet EN55011/55022 and FCC Class B
  • Power Factor 0.98 typical
  • OVP, OCP, OTP protection
  • Output Inhibit control & Power Failed indication
  • Output voltage sense input
  • Standby voltage 5Vdc up to  2A
  • Fan driver 12Vdc
  • Optional form factor PCB, L-bracket & Enclosed selection

Introduction

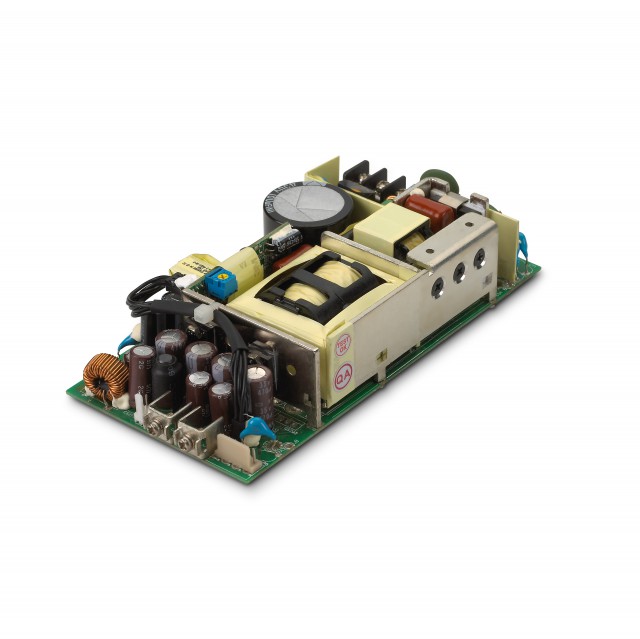

This series of AC-DC switching power supplies in a package of 3 x 6 x 1.3 inches are capable of delivering 300 watts of continuous power at 10 CFM forced air cooling or 200 watts at convection cooling. A L-bracket as a mechanical support or cover-and-fan assembly can be added during manufacturing.

Download

ME 2D Drawings
ME 3D Drawings
Product Sheet
Safety
