  • 29.4V/8A battery charger
  • LED signal indicator(Standby/Charging/Charger/Abnormal)
  • Perfect heat dissipation
  • Operating temperature range: -10 to 40°C
  • Optimized charging module design
  • Charging efficiency over 94%
  • Lightweight 660g and compact product dimensions: 177*86*32.2mm
  • Complete charging protection design: OVP, UVP, SCP, reverse polarity protection, charger OTP, battery OTP, and timing protection
  • EMC : EN55014-1,55014-2; EN61000-3-2,61000-3-3
  • Safety : IEC/EN 60335-1; 60335-2-29
  • Application : e-bike battery charger, e-motorcycle battery charger, e-scooter battery charger, e-wheelchair battery charger

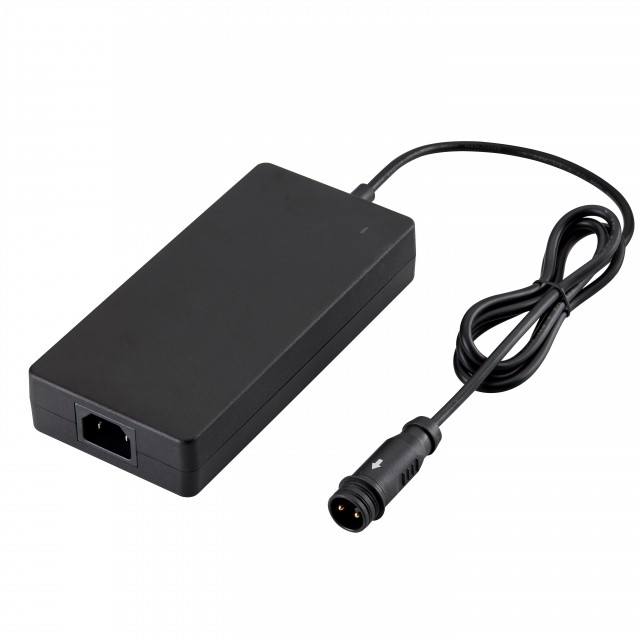

FSP235-7S8AC18 is a 235W fast charger with 29.4V/8A. Widely applications for wheelchairs, e-scooter and e-bike which use 6S or 7S battery. 8A Charging current provide 4X faster than normal 2A. Fanless design, optional DC connectors in compliance with UL certification.
