What is Medical Power Supply used for?

A Smarter Medical Experience

FSP medical power supplies come in a complete assortment of wattages and a diversity of types. Four types are available for you to choose from, including PC ATX power supply, adaptor, open frame, and backup power that accommodate a lineup of medical devices. They apply to diagnostic equipment, therapeutic equipment, in-vitro medical diagnostic devices, physiotherapy, home care, operating room (OR), etc. The applications include ultrasonic equipment, X-ray machines, ECG displays, monitors, respirators, ophthalmic equipment, oxygen concentrators, biochemical testing devices, physiotherapy machines, portable oxygen supply equipment, surgical lights, medical beds, etc. FSP Group Protek has 30 years of experience in designing professional medical power supplies. Over the years, it has developed and completed many design projects with the concerted efforts of many customers, winning trust and praise. Familiar with the medical power supply regulations and application processes, Protek demonstrates development and design capabilities, promptly solves customer problems, and assists in designing customization products and modifying standard products.

What are the rules of medical power supplies? How should you choose medical power supplies?

In order to reduce the electrical hazards that patients may be exposed to due weakness while receiving medical treatment, medical power supplies have rigorous rules for leakage current, isolation level, insulation and withstand voltage, noise, and more. Medical electronic devices are divided into the following types according to the different parts of the patient’s body that they come in contact with: Type B (Body), Type BF (Body Floating), and Type CF (Cardiac Floating). Leakage current is divided into three types: earth, enclosure, and patient leakage. Medical power supplies only need to be evaluated for earth and enclosure leakage in compliance with IEC60601-1 3rd Edition. Medical devices differ in size and complexity. Please select power supplies with high stability based on the requirements and specifications of each medical device in order to protect the safety of patients and equipment operators.

Certification

FSP Medical Power Supply Meets the Latest Certifications

FSP medical power supplies align with the latest international standards of IEC 60601-1, and IEC 62368-1. UL, TUV, or VDE certification has also been obtained. The FAE Center has been established at the FSP’s European operation center in Germany to provide technical advisory services.

Qualification

FSP has an independent Product Qualification & Safety  Certificate Department to ensure product design.

Customization

We specialize in providing the stable reliable quality standard, modified and customized medical-grade products.

Diversification

We provides various power supplies intended to fit any kinds of medical devices.

Medical Power Supply

Medical PSU Application Example

FSP provides diversified medical power supplies such as PC Power, Adaptor, Open Frame PSU and Battery Backup Solution.

  • PC Power range: 220w~700w
  • Adapter range: 18w~250w
  • Open Frame PSU range: 60w~1100w

FSP also provides semi-customized or fully customized design service.

Recommend Products FSP500M-80PA FSP500M-80PD FSP500-70MPE FSP700M-70PB

FSP provides diversified medical power supplies such as PC Power, Adaptor, Open Frame PSU and Battery Backup Solution.

  • PC Power range: 220w~700w
  • Adapter range: 18w~250w
  • Open Frame PSU range: 60w~1100w

FSP also provides semi-customized or fully customized design service.

Recommend Products FSP500M-80PA FSP500M-80PD FSP500-70MPE FSP700M-70PB

FSP provides diversified medical power supplies such as PC Power, Adaptor, Open Frame PSU and Battery Backup Solution.

  • PC Power range: 220w~700w
  • Adapter range: 18w~250w
  • Open Frame PSU range: 60w~1100w

FSP also provides semi-customized or fully customized design service.

Recommend Products FSP065M-DBA FSP090M-RBA

FSP provides diversified medical power supplies such as PC Power, Adaptor, Open Frame PSU and Battery Backup Solution.

  • PC Power range: 220w~700w
  • Adapter range: 18w~250w
  • Open Frame PSU range: 60w~1100w

FSP also provides semi-customized or fully customized design service.

Recommend Products FSP065M-DBA FSP090M-RBA

FSP provides a great variety of CLASS-I or CLASS-II Power (protective earthing) Adaptor and Open Frame power supplies.

Recommend Products FSP090-RACM1 FSP150M-KAC FSP250M-KAD

FSP provides a great variety of CLASS-I Power (protective earthing) Adaptor and Open Frame power supplies.

Recommend Products FSP090M-RAA FSP150M-KAC FSP250M-KAD

FSP provides a great variety of CLASS-I Power (protective earthing) Adaptor and Open Frame power supplies.

Recommend Products FSP090M-RAA FSP150M-KAC FSP250M-KAD

FSP provides a great variety of CLASS-I Power (protective earthing) Adaptor and Open Frame power supplies as well as Battery Backup Solution customization service.

Recommend Products FSP500M-K47-24B FSP650M-K48-24C

FSP provides a great variety of CLASS-II Power (protective earthing) Adaptor and Open Frame power supplies.

Recommend Products FSP150M-KEC FSP090-RACM1

FSP provides a great variety of CLASS-II Power Adaptor power supplies.

Recommend Products FSP090-RACM1 FSP065-DACM1

FSP provides a great variety of CLASS-II Power Adaptor power supplies.

Recommend Products FSP090-RACM1 FSP065-DACM1 FSP150M-KAC

FSP provides a great variety of CLASS-I Power (protective earthing) Adaptor and Open Frame power supplies.

Recommend Products FSP300M-K36-24A

FSP provides a great variety of CLASS-I Power (protective earthing) Adaptor and Open Frame power supplies.

Recommend Products FSP650M-K48-24C FSP500M-K47-24B

FSP takes care of your health.
Medical Power Supply Solutions

Medical PSU FAQ

IEC 60601-1 IEC 60950-1
Leakage current Earth leakage current: 0.5mA
Touch current: 0.1mA
Earth leakage current: 3.5mA
Touch current: 0.25mA
Dielectric strength test voltages (250V) Input to Output: 4000Vac
Input to Ground: 1500Vac
Output to Ground: 1500Vac
Input to Output: 3000Vac
Input to Ground: 1500Vac
Output to Ground: 500Vac
Creepage distances / Air clearance (250V) Basic Insulation: 4.0/2.5mm
Reinforced Insulation: 8.0/5.0mm
Basic Insulation: 2.5/2.0mm
Reinforced Insulation: 5.0/4.0mm

Redundant operation is used in parallel connections of N Power Supplies (single operation when N = 1) of the same model, where a redundant Power Supply is added to the number of Power Supplies (N) in parallel operation (N+1), thereby improving the reliability of the system.

Hot Swap is replacing or adding components without stopping or shutting down the system.

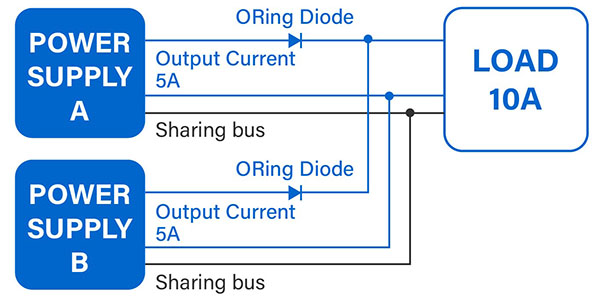

Current sharing is the technique in which power supplies are connected in parallel to provide more load current or redundant power to a load. This connection increases the amount of current available for the load while the voltage remains constant.
