FSP500M-K47-24B
Medical Power Supply
Feature
- Certified Medical Safety IEC 60601-1
- Input Voltage Range 90-264 VAC
- Low Leakage Current
- Operating Altitude 5,000M
- Over Voltage/ Over Current/ Short Circuit/ Over Temperature Protections
- Compliant with RoHS requirement
Introduction

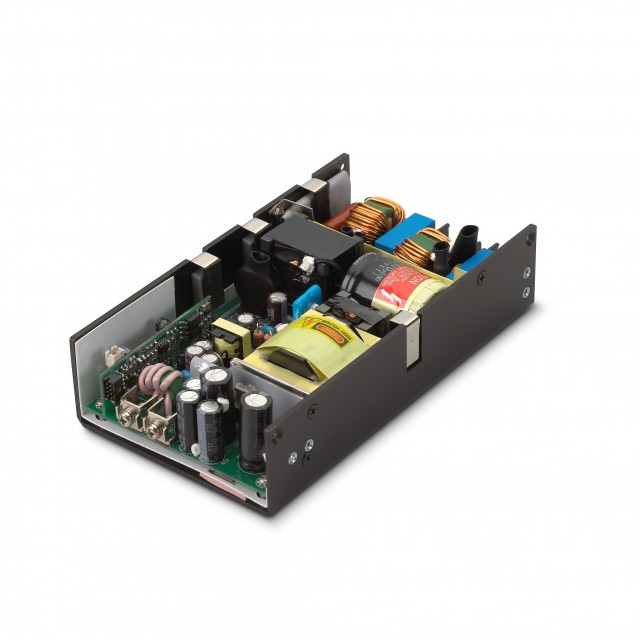

This product is Class I open frame in a package of 4 × 7 × 1.7 inch, which output voltage is 24V with +5V standby power and maximum output power is 500W at 30CFM forced air cooling or 400W at convection cooling. The unit is constructed on a printed circuit board with a U-bracket or enclosed form for mechanical support and heat sinking. The unit approved medical safety and certified EMC medical standard, and is designed for medical applications.
