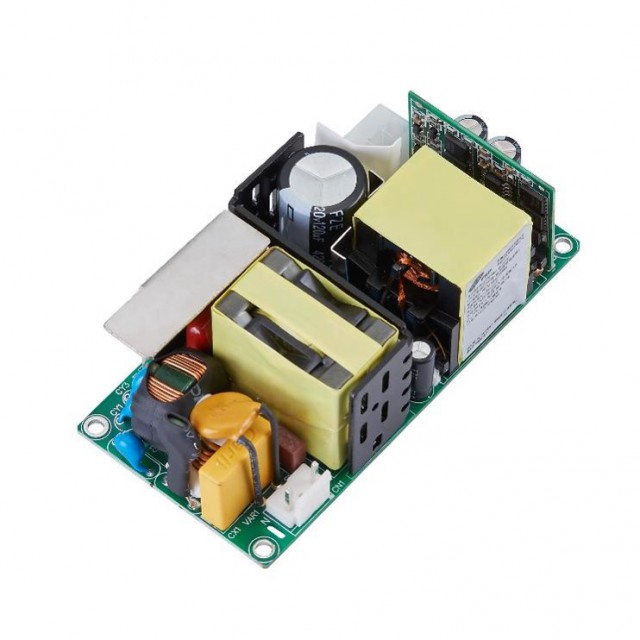

FSP250-H24-A12

UL/cULCECB

Open Frame Power Supply

Feature

  • HVDC 128~310V input operation
  • 1.5KVac isolated between PE and RETURN
  • Surge protection ±2 KV diff., ±4 KV com
  • High altitude 5000 meters operation
  • Output power no de-rating at 90~264Vac & -20 ~ 50℃ operating

Introduction

This AC-DC switching power supplies is a Class-I (with Protection Earth) safety construction in a package of 2 x 4 x 1.126 inches. It’s suitable for 1U chassis design. Standby power consumption less than 0.5W at 0.2W load condition is comply with Energy Star requirement. This PSU is capable of delivering 250 watts of continuous power at 14 CFM forced air cooling or 150 watts of continuous power at convection cooling, both are operating at 50℃ temperature. The product is suitable for audio, information, and networking application.

Download

ME 2D Drawings
ME 2D Drawings
ME 3D Drawings
ME 3D Drawings
Datasheet
Datasheet
Safety
Safety
Open Frame FSP250-H24-A12
