FSP150-P24-C12

Feature

• PFC build-in
• High efficiency
• EN55032 Level B emission
• Input power less than 0.5W @ 0.2W load
• 1.5KVac isolated between PE and RETURN
• +12V fan driver
• Fast-on ground tab

Introduction

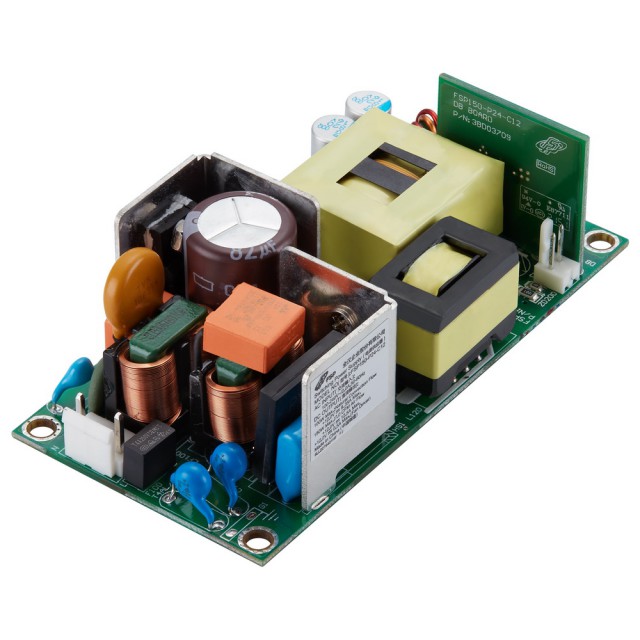

This series AC-DC switching power supply is Class-I design which is with Protected Earth. The units are constructed on a printed circuit board in a 2 x 4 inches form factor. Input power less than 0.5W is suitable for end products that have standby mode requirements. PSU is capable of delivering 150 watts of continuous power at 7 CFM forced air cooling or 100 watts of continuous power at convection cooling and 50℃operation temperature. They are suitable for information, audio/video, and networking applications.

Download

ME 2D Drawings

ME 3D Drawings

Datasheet

Safety
