FSP150-P36P-A36
Open Frame Power Supply
Feature
- PFC build-in
- High efficiency
- EN55032 Class B emission
- Input power < 0.5W at 0.2W load
- PSU remote ON/OFF
Introduction

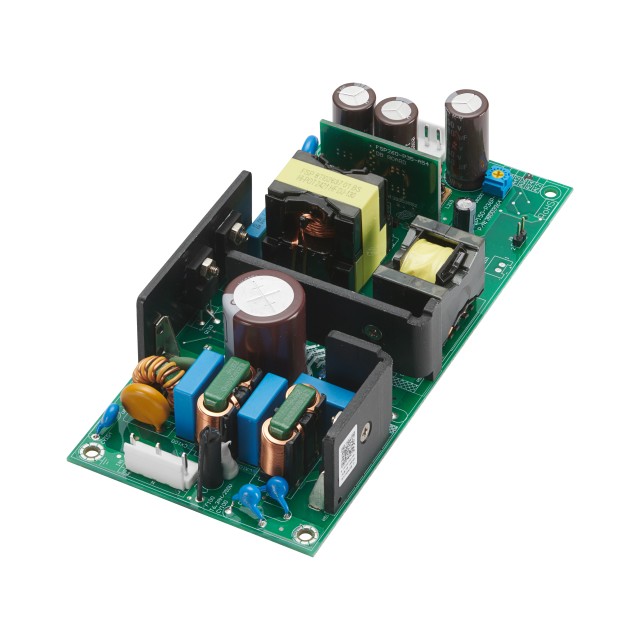

This series AC-DC switching power supply is Class-I design which is with Protected Earth. The units are constructed on a printed circuit board in a 160 x 75 x 32 mm form factor. Input power less than 0.5W is suitable for end products that have standby mode requirements. PSU is capable of delivering 150 watts of continuous or 300 watts of peak power (12V at 225W) at convection cooling and 50℃operation temperature. They are suitable for industry and information applications.
Download
ME 2D Drawings
ME 3D Drawings
Datasheet
Safety
