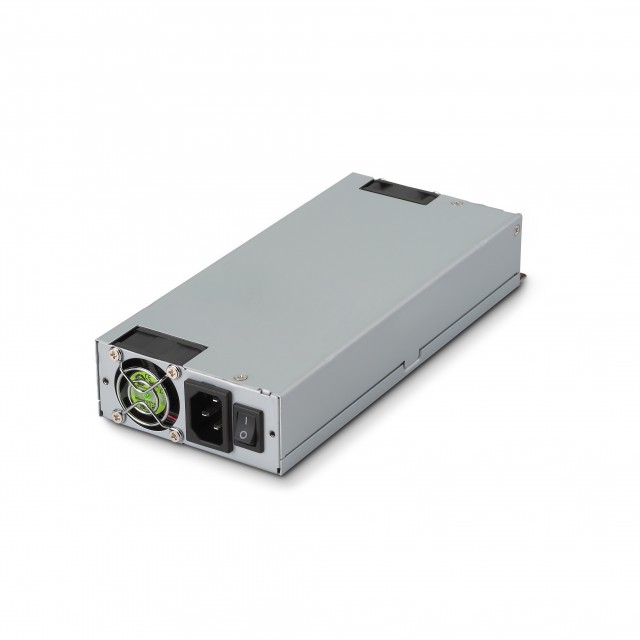

Medical Power Supply FSP500M-80PA | FSP TECHNOLOGY INC.
30th Anniversary

FSP500M-80PA

UL/cULCETUVCB

Medical Power Supply

Feature

  •  Certified Medical Safety IEC 60601-1
  •  Full Range Input 90-264 VAC
  •  Active PFC Circuit
  •  High Efficiency Meet 80 PLUS GOLD
  •  Operating Altitude 5,000M
  •  Secondary Side 3.3V/5V Outputs DC-DC Design
  •  Over Voltage/ Over Current/ Short Circuit/ Over Temperature Protections

Introduction

This product is PC power in the 1U form factor 220 × 100 × 41mm, which maximum output power is 500W and efficiency is 87%90%87%. The unit approved medical safety and certified EMC medical standard, and is designed for medical applications.

Download

ME 2D Drawings
ME 2D Drawings
ME 3D Drawings
ME 3D Drawings
Datasheet
Datasheet
Safety
Safety
Medical Power Supply FSP500M-80PA
80 Plus gold
