FSP500-70MPE

Feature

•  Certified Medical Safety IEC 60601-1
•  Full Range Input 90-264 VAC
•  Active PFC Circuit
•  Operating Altitude 5,000M
•  Secondary Side 3.3V/5V Outputs DC-DC Design
•  Over Voltage/ Over Current/ Short Circuit Protections

Introduction

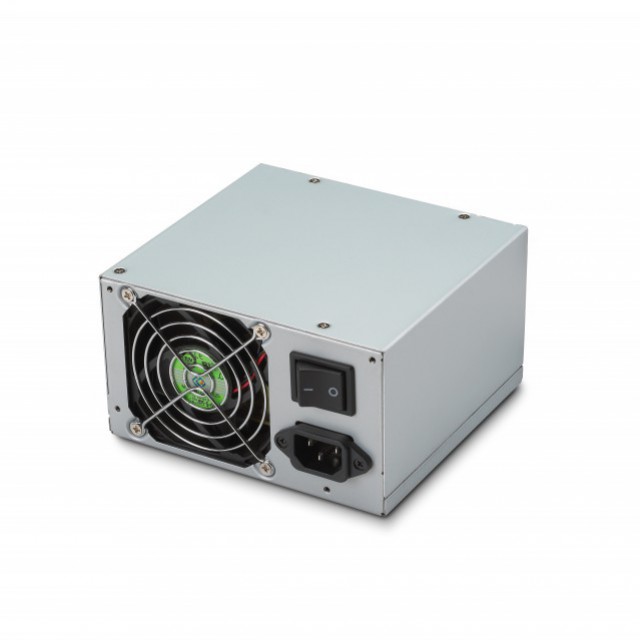

This product is PC power in the PS2 form factor 140 × 150 × 86mm, which maximum output power is 500W and efficiency is 78%. The unit approved medical safety and certified EMC medical standard, and is designed for medical applications.
