FSP150-P24-C54

제품 특성

• Output power no de-rating at 90~264Vac & -20 ~ 50℃ operating
• 1.5KVac isolated between PE and RETURN
• High altitude 5000 meters operation
• +12V fan driver
• Fast-on ground tab

제품 설명

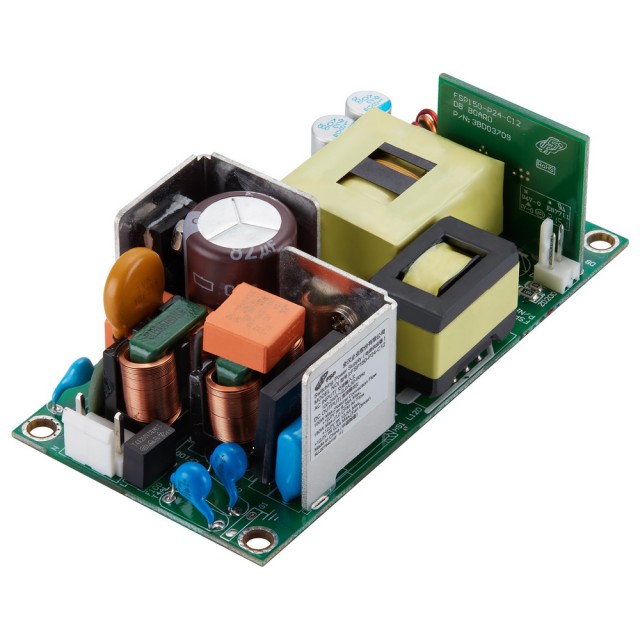

This series AC-DC switching power supply is Class-I design which is with Protected Earth. The units are constructed on a printed circuit board in a 2 x 4 inches form factor and input power less than 0.5W at 0.2W load condition. PSU is capable of delivering 150 watts of continuous power at 7 CFM forced air cooling or 100 watts of continuous power at convection cooling and 50℃operation temperature. They are suitable for information, audio/video, and networking applications.

자료 다운로드

2D 설계도

3D 설계도

규격서

안전규정 증명서
