• 3 x 5 inch footprint with 1.5 inch low profile
  • 100-240 VAC input with active PFC
  • Less than 220 μA leakage current
  • Meet EN55011 /55022 and FCC Class B
  • Power Factor 0.98 typical
  • Short-circuit protection
  • Power Fail Detect (PFD) signal
  • Inhibit - TTL high to disable output
  • Compliant with RoHS requirements
  • Efficiency greater than 87%

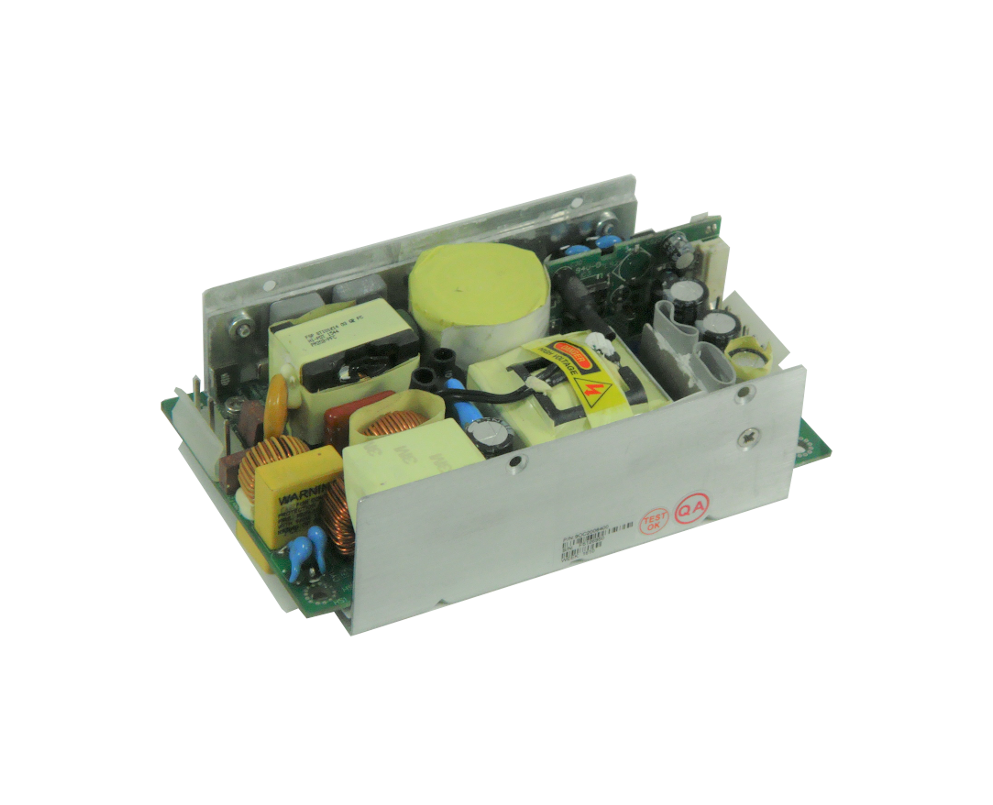

This series of AC-DC switching power supplies in a package of 3 x 5 x 1.5 inches are capable of delivering 200 watts of continuous power at 5.3 CFM forced air cooling or 150 watts at convection cooling. The units are constructed on a printed circuit board with a U-bracket for mechanical support and heat sinking. A cover-and-fan assembly can be added during manufacturing for 200 watt output. They are specially designed for medical applications, but not for life-supporting equipment.
