Flex ATX Power Supply: Product Catalog & Selection Guide

2021-11-01

The Flex ATX Power Supply is one you may want to own as it is powerful and has many applications. It’s a way to make your equipment more efficient and work better. Learn more about it in this product catalog and selection guide. This way you’ll know what it is, typical applications for it, how to pick Flex ATX power supply, and some recommendations that will be best suited for you and your needs.



Overviews



Flex ATX Introduction

FSP's modular flex ATX power supply features an innovative mechanical design. They not only include most modular options on the market but all the Flex ATX models are available in standard direct output and modular cable configurations. One reason why the power supply is a must is because of its modular design which improves the ease of use. One benefit of using this particular power supply is that you can configure your power cables according to the needs of the system you’re using.

You may also take pleasure in the fact that if for any reason the power supply becomes damaged, you only need to replace the module and not the entire piece. It’s easy and convenient to replace due to the special plug-in design for cables and jacks. Should you experience any problems, the fully modular connectors allow you to quickly disassemble cables, locate issues, and save overall debugging time.

The power supply is easy to maintain and offers a total power capacity of up to 250 W. The product complies with the latest safety and EMC standards, so it can easily meet various regulations worldwide no matter your location.





Typical Applications for Flex ATX

It’s well suited for use in an industrial environment since it uses a unique active power factor correction (PFC) circuit design with high-load electrical components. In addition, with its full range of input and output electrical features, the power supply is an excellent choice for use in servers, workstations, communications, or any other automation applications.

There are many applications and ways to use the Flex ATX Power Supply. For instance, it’s ideal for networking and telecommunications uses. Some additional ways to use the Flex ATX and reasons you may need it are as follows:

·         Industrial control equipment

·         Industrial computers

·         Surveillance systems

·         POS systems

·         Gaming machines

·         Edge computing

·         IoT devices





How to Pick Flex ATX Power Supply

There are choices when it comes to choosing a Flex ATX Power Supply. You may be wondering how to go about picking one and what to be looking for as you review your options. It’s best to look for what features the Flex ATX Power Supply has, for starters, In addition, you should consider your uses for it or the purpose of getting and needing one.

As far as features go you can begin by reviewing the wattage. Be glad to know that the Flex ATX  is available in 150 W, 180 W, 220 W, 250 W, 300 W, and 350 W. Overall, you want a power supply such as this one that has improved power density over other options like the general Flex ATX. Consider where the capacitors are made and if they’re of high quality when thinking about picking your next Flex ATX Power Supply. Look further into the certified efficiency standards and if it meets these as well.

You also want to ensure that the one you choose complies with the latest international safety standards. It’s extremely important that you feel safe using it and that you shouldn’t be anticipating any issues. In particular, the Flex ATX has multiple protection mechanisms including OVP, UVP, OCP, SCP, and OPP. Also, when protection has been triggered it’ll latch off. Depending upon where you work or what you’re doing, you may also want to minimize the noise level in the area where your power supply is. In this case, the Flex ATX may be perfect because it has a low-noise design. It contains a unique fan noise shielding design, a smart fan control system, and a durable and quiet 40 mm ball-bearing fan.





Flex ATX Recommendations

FSP's Flex ATX models are industrial-level switching power supplies. Below are a few of the Fully Modular Flex ATX Power Supply products to choose from.

·         FSP250-60MPC: The AC DC 250W, FLEX, MEDICAL PC ATX; ATX AC DC Converters 5 Output  3.3V/12A, 5V/14A, 12V/18A, -5V/ 300mA  90 ~ 264 VAC Input; 331W; The features include PFC, Standby Output, Universal Input; The size is 7.48" L x 3.23" W x 1.61" H (190.0mm x 82.0mm x 41.0mm); It’s also RoHS Compliant; It’s in stock and ready to ship immediately

·         FSP220-60MPC: The AC DC 220W, FLEX, MEDICAL PC ATX; ATX AC DC Converters 5 Output 3.3V/9A, 5V/12A, 12V/14A, -5V/ 300mA 90 ~ 264 VAC Input; 263W; The features include PFC, Standby Output, Universal Input; The size is 7.48" L x 3.23" W x 1.61" H (190.0mm x 82.0mm x 41.0mm); It’s also RoHS Compliant; It’s in stock and ready to ship immediately

·         FSP180-50FGNBI(M): This particular FLEX ATX 180-WATT POWER SUPPLY UNIT offers a total power capacity of up to 180 Watts with 50°C working temperature, which makes it perfectly usable in an industrial environment. Plus, customers can take advantage of its cable management feature for quick cable exchanging or replacement. The power supply is ideally the best choice for server, workstation, communication, or any other automation applications to use.

·         FSP250-50FGBBI(M): The FSP250-50FGBBI(M) is an industrial level of switching power supply, which offers a total power capacity of up to 250 Watts with 50°C working temperature, making it to be perfectly usable in an industrial environment. Plus, customers could take advantage of its cable management feature for quick cable exchanging or replacement. The power supply is ideally the best choice for server, workstation, communication, or any other automation applications to use.

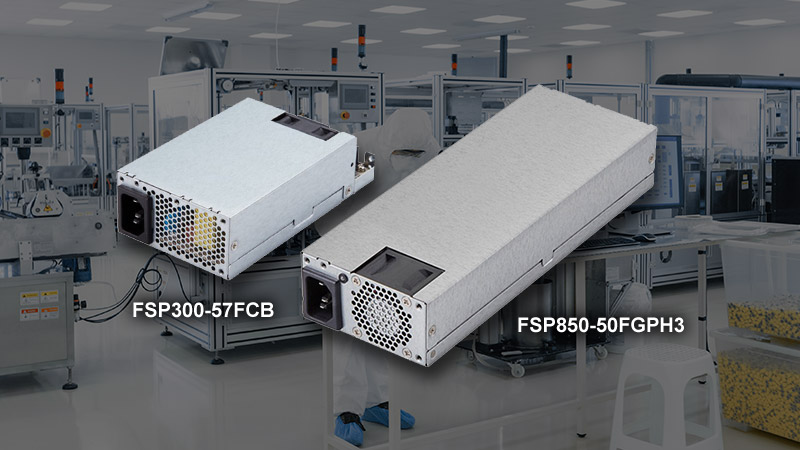

·         FSP300-57FCB: This FLEX ATX 300-WATT POWER SUPPLY UNIT is certified to perform with 80PLUS Gold efficiency. It features full-range Active PFC, 40mm ball-bearing cooling fan locate at output side for lower noise level and better air flow performance. It fits most compact high-performance PC systems. In addition, customers can take advantage of its cable management feature for quick cable exchanging or replacement.

·         FSP500-50FDB: The FSP500-50FDB is an industrial level of switching power supply and certified to perform with 80PLUS Gold efficiency. It comes to offer a total power capacity of up to 500 Watts with 50°C working temperature, making it to be perfectly usable in an industrial environment. The power supply is ideally the best choice for server, workstation, communication, or any other automation applications to use. The product also complies with the latest safety and EMC standards, which meet various regulations worldwide.

·         FSP850-50FGPH3: The FSP850-50FGPH3 is an industrial level of switching power supply and meets 80PLUS Platinum efficiency. The power supply offers a total power capacity of up to 850 Watts, best for AI/GPU server, communication, or any other automation applications to use. The product also complies with the latest safety and EMC standards, which meet various regulations worldwide.

These are some of the best and most complete products you’ll find on the market. They vary in wattage and input conditions but are all very efficient. You can micro customize some aspects such as the output cable, fan speed, and telecommunication specification. They also all have high compatibility. You should now be able to choose the right FLEX ATX power supply for you and your needs.

About FSP

FSP Group is one of the global leading power supply manufacturer. Since 1993, FSP Group has followed the management conception “service, profession, and innovation” to fulfill its responsibilities as a green energy resolution supplier.
